56K USB Modem: User Guide

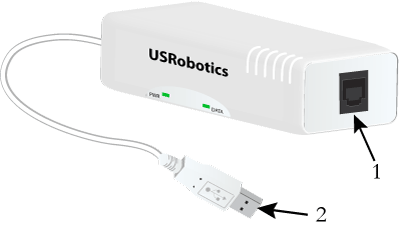

Product Features

1. Connects the modem to your telephone line.
2. Connects the modem to your computer.

LEDs

LED	State	Function
PWR	Solid	Receiving power and driver is properly installed.
	Off	Not receiving power.
DATA	Flashing	Modem is active.
	Solid	Receiving a valid carrier signal from a remote modem; data transmission is possible. OR Carrier Detect override is ON (&C0).
	Off	The 56K USB Modem is not active.

General

• Data: V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 212A, V.8, V.8bis, Bell 103, and V.80 video conferencing support
• Data Error Control/Compression: V.42/V42bis, V.42 LAPM, V.44 and MNP2-4/5
• Fax: EIA 578 (Class 1) with V.17, V.29, V.27ter, V.21, Group 3
• DTE interface: USB Version 2.0
• USB powered, consumption: 240 mA (typical)

Physical

• 2 LEDs: Power (PWR), Data (DATA)
• Phone line interface: One RJ-11 socket
• Caller ID support (requires service from your local phone company; Caller ID may not be supported in some countries)
