Development Process

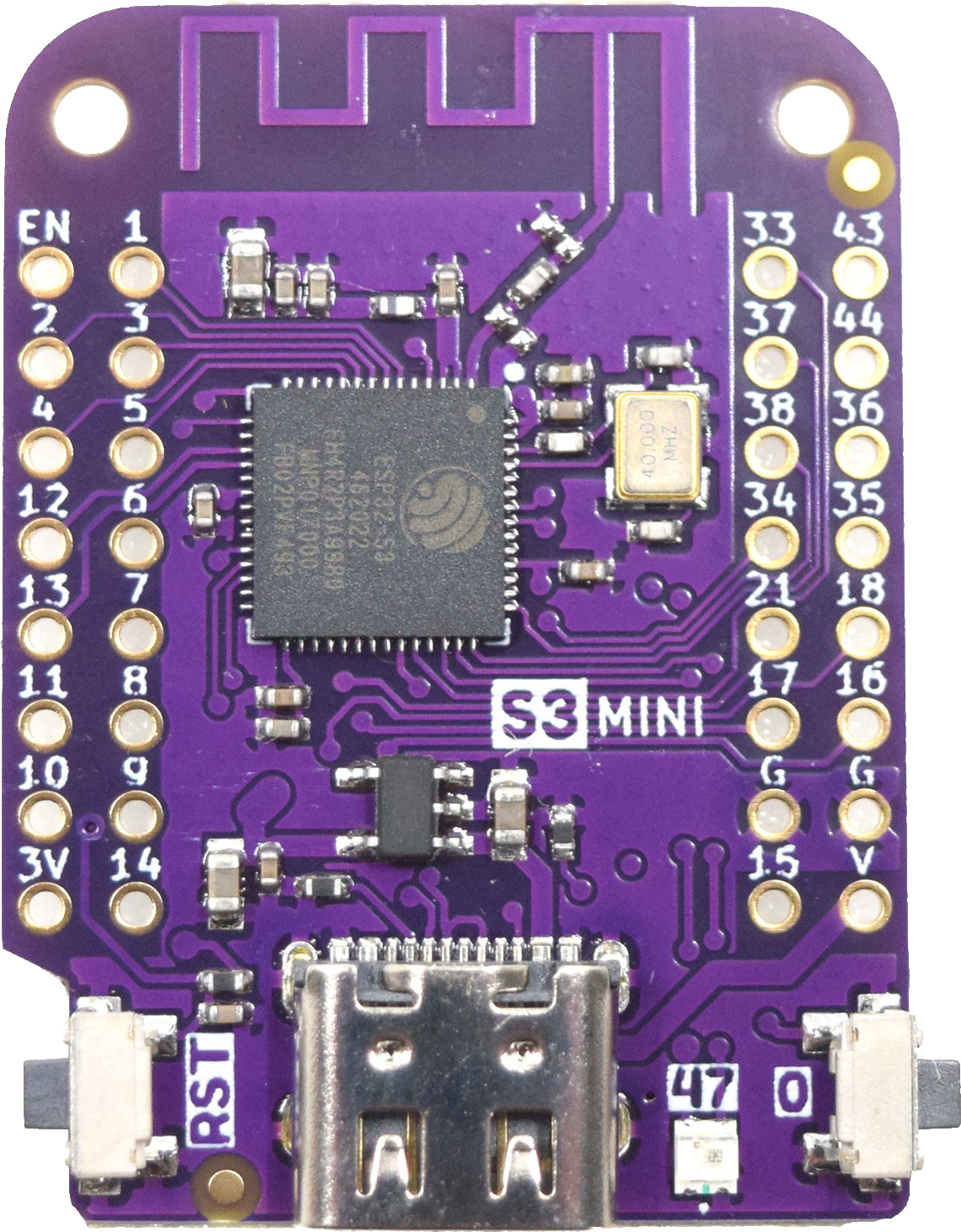

ESP32-S3 - WEMOS S3 Mini

• 2x LX7, FPU, 80-240 MHz
• RISC-V co-processor
• 4 MB Flash
• 512 KB SRAM
• 2.4 GHz Wi-Fi
• Bluetooth LE
• GPIO with PWM
• ADC (20 channels)
• RTC
• USB/JTAG
• SPI, I2C, I2S, UART...

Desired Features

• World Time
  • Auto-detect timezone
  • Synchronize to NTP server
• Weather Forecast
  • Auto-detect coordinates
• Current Weather
  • Configurable through web UI

Requirements

• Display aligned to round seconds
• Controlled by a single button
• Busy & error indicators
• Buzzer imitating clicking sound
• Adaptive illumination
• AP mode for initial configuration
• Self-hosted web UI
• Resotres WiFi connection
• Energy-safe mode when on battery

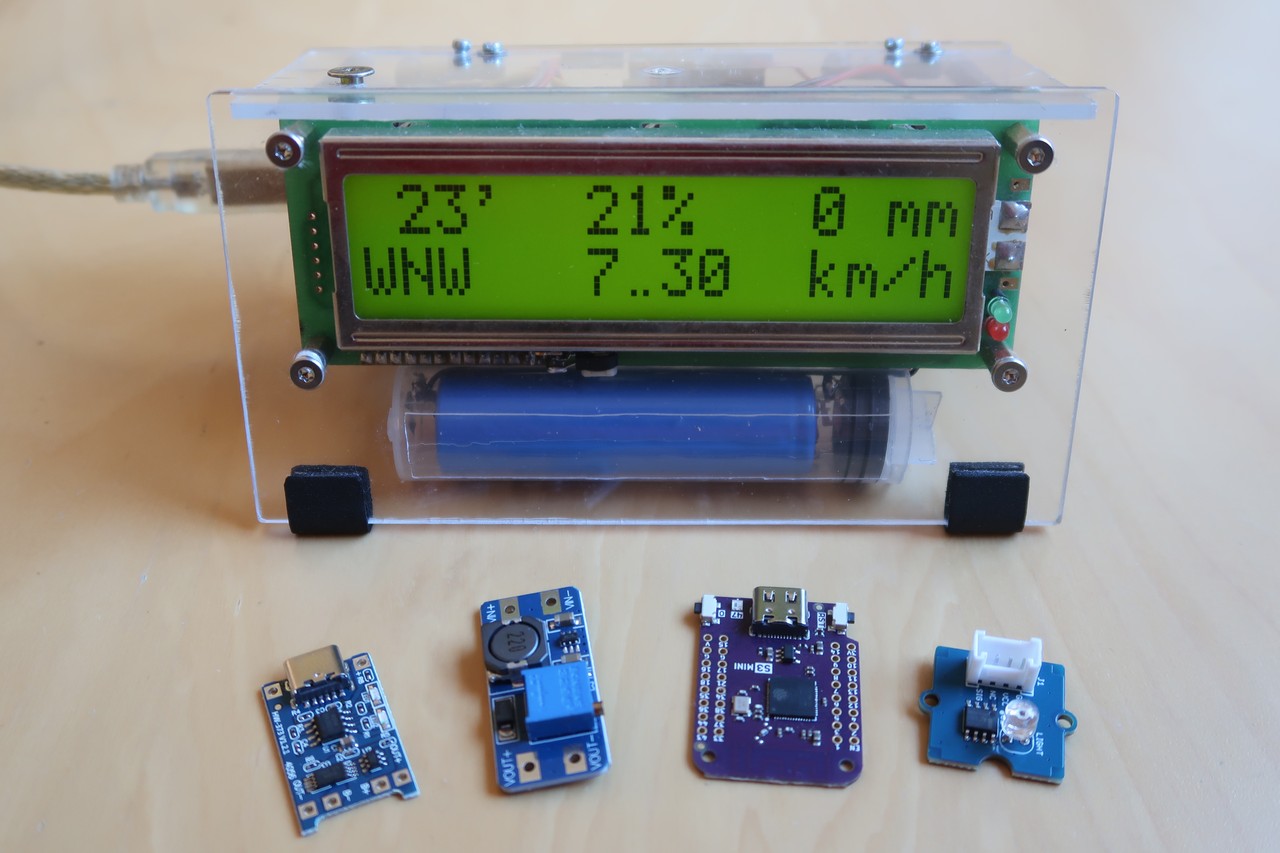

Hardware Overview

Prototype

System Overview

Data Flow

Dropping Channel


                    pub fn send(&self, obj: T) -> anyhow::Result<()> {
                        self.send_or_drop(obj)
                    }

                    fn send_or_drop(&self, obj: T) -> anyhow::Result<()> {

                        match self.tx.try_send(obj) {
                            Ok(()) => Ok(()),
                            Err(mpsc::TrySendError::Full(_obj)) => {
                                Ok(()) // drop the message
                            }
                            Err(mpsc::TrySendError::Disconnected(_)) => Err(
                                anyhow::anyhow!(
                                    "Message sent to disconnected channel {}",
                                    self.name
                                )
                            ),
                        }
                    }



Blocking Channel


                    fn send_or_log_and_block(&self, obj: T) -> anyhow::Result<()> {
                        match self.tx.try_send(obj) {
                            Ok(()) => Ok(()),
                            Err(mpsc::TrySendError::Full(obj)) => {
                                let msg = format!(
                                    "Channel reached its capacity: {}",
                                    self.name
                                );
                                log::error!("{}", msg);
                                match self.tx.send(obj) {
                                    Ok(()) => Ok(()),
                                    Err(e) => Err(anyhow::anyhow!(
                                    "Failed to send message to channel {}: {}",
                                        self.name, e)),
                                }
                            }
                            Err(mpsc::TrySendError::Disconnected(_)) => Err(
                                anyhow::anyhow!(
                                    "Message sent to disconnected channel {}",
                                    self.name)),
                        }
                    }



Blocking Channel (for debugging)


                    pub fn send(&self, obj: T) -> anyhow::Result<()> {
                        #[cfg(not(feature = "panic_on_tx_overflow"))]
                        self.send_or_log_and_block(obj)?;
                        #[cfg(feature = "panic_on_tx_overflow")]
                        self.send_or_panic(obj)?;
                        Ok(())
                    }
                    fn send_or_panic(&self, obj: T) -> anyhow::Result<()> {

                        match self.tx.try_send(obj) {
                            Ok(()) => Ok(()),
                            Err(mpsc::TrySendError::Full(_obj)) => {
                                panic!(
                                    "Channel reached its capacity: {}",
                                    self.name)}

                            Err(mpsc::TrySendError::Disconnected(_)) => Err(
                                anyhow::anyhow!(
                                    "Message sent to disconnected channel {}",
                                    self.name)),
                        }
                    }



Platform Simulator
