1001 - AutoCAD Hatch

Click to Download Drawing 1001.dwg

Select Hatch Command

Select Hatch Command
Zoom

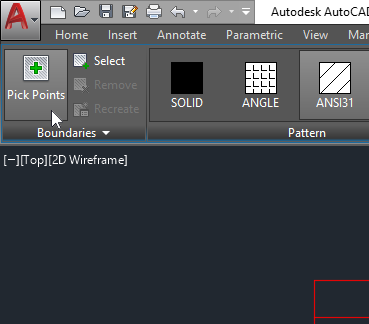

Hatch Using 'Pick Points'

Select Point Inside Object

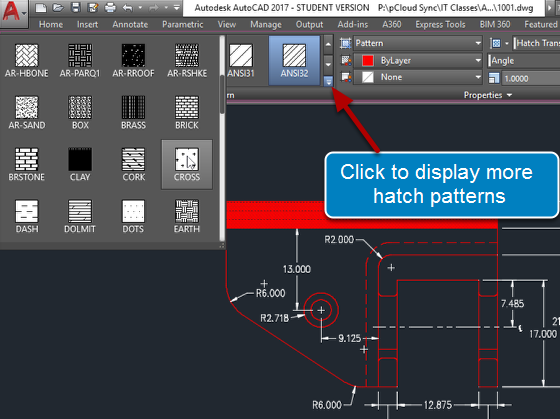

Change Hatch Pattern

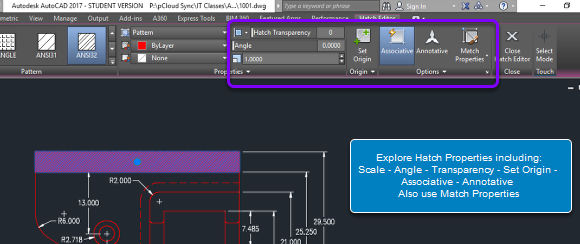

Change Hatch Properties

Change Hatch Properties
Zoom

Break Line at a Point (1)

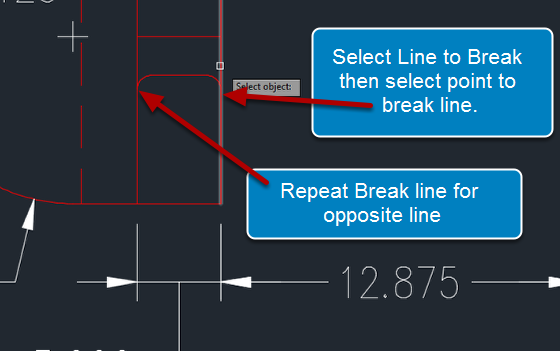

Break a Line at a Point (2)

Hatch area using Select Boundary Objects

Select Objects with Window

Hatch Complete
